AT-B2
RTK Base Station
Built-in high-precision centimeter-level GNSS positioning module, ensure long-term use in precision agriculture, unmanned driving and other application fields.
Feature
High Precision
Provide reliable and effective calibration data for achieving centimeter-level positioning accuracy.
Correction
Adopt RTCM data format output. Reliable UHF data communication, compatible with a variety of UHF communication protocols, can be adapted to most of the radio mobile stations on the market.
All-day Usage
Built-in 72Wh large-capacity Li-battery, supporting more than 20 hours of working time (typical), which is very suitable for long-term use.
Reliability
With IP66&IP67 rating and UV protection, ensure high performance, accuracy and durability even in complicated and harsh environments.
User-friendliness
Battery level can be easily checked through the power indicator status by pressing the power button.
Wide-range Operation
Built-in high-power UHF radio, broadcasting distance over 5 kilometers, eliminating the need to move base stations frequently.
Specification
| Satellites Tracking |
|
| Constellations |
GPS: L1C/A, L2P (Y), L2C, L5 |
| BDS: B1I, B2I, B3 | |
| GLONASS: G1, G2 | |
| Galileo: E1, E5a, E5b | |
| QZSS: L1, L2, L5 | |
| Channels | 1408 |
| Accuracy | |
| Standalone Position (RMS) | Horizontally: 1.5m |
| Vertically: 2.5m | |
| DGPS (RMS) | Horizontally: 0.4m+1ppm |
| Vertically: 0.8m+1ppm | |
| RTK (RMS) | Horizontally: 2.5cm+1ppm |
| Vertically: 3cm+1ppm | |
| Initialization reliability >99.9% | |
| Time to first fix | |
| Cold Start | ＜30s |
| Hot Start | ＜4s |
| Data Format | |
| Data Update Rate | 1Hz |
| Correction Data Format | CMR/RTCM 3.3/3.2(default)/3.1/3.0 |
| UHF Corrections Transmit | |
| Transmission Power | High 30.2 ±1.0dBm |
| Low 27.0 ±1.2dBm | |
| Frequency | 410-470MHz |
| UHF Protocol | TRIMATLK; TRIMMARK3; TT450S; |
| TRANSEOT; SOUTH; HUACE; SATEL | |
| Air Communication Rate | 4800bps, 9600bps, 19200bps |
| Distance | 3-5km (Typical) |
| Communication |
|
| BT (For setting) |
BLE 5.2 |
| IO Ports | RS232 (Reserved for external radio station) |
| User Interaction | |
| Indicator Light | Power Light, BT Light, RTK Light, Satellite Light |
| Button | On/Off button (Press the button to check the battery |
| capacityby the status of the power indicator.) | |
| Power | |
| PWR-IN | 8-36V DC |
| Built in Battery | Built-in 10000mAh Li-ion battery; 72Wh; 7.2V |
| Duration | Approx. 20h (Typical) |
| Power consumption | 2.3W (Typical） |
| Connector | |
| M12 | ×1 for Power in |
| TNC | ×1 for UHF Radio; 3-5KM (Typical Non-blocking Scenario) |
| Interface for Installation | 5/8“-11 Pole Mount Adapter |
| Physical Dimension | |
| Dimension | 166.6×166.6×107.1mm |
| Weight | 1241g |
| Environmental Reliability | |
| Protection Rating | IP66&IP67 (IEC 60529) |
| Shock and Vibration | MIL-STD-810G |
| Operating Temperature | -30°C ~ +70°C (-31 °F ~ 167 °F) |
| Storage Temperature | -40°C ~ +80°C (-40 °F ~ 176 °F ) |
Accessories

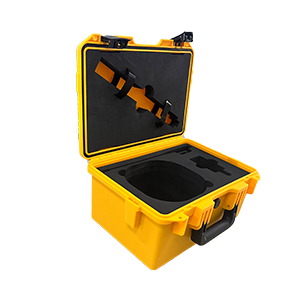

Equipment Box

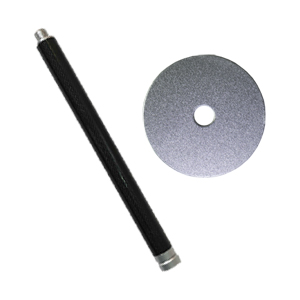

Extension Pole & Aluminum Plate

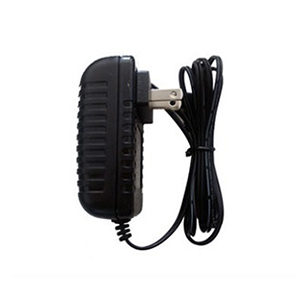

Power Adaptor

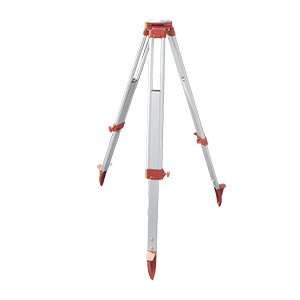

Tripod

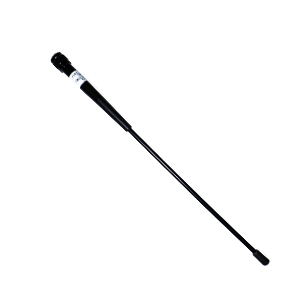

Whipping Antenna A

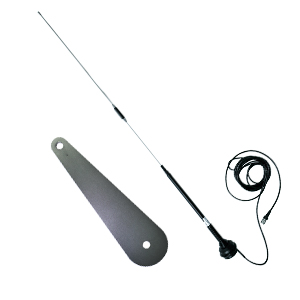

Whipping Antenna B & Aluminum Plate (optional)

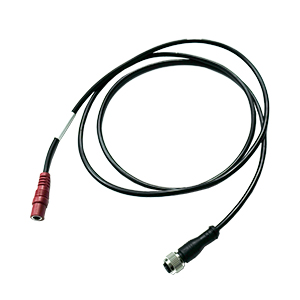

M12 Power Cable 1.5m

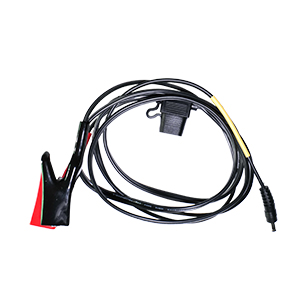

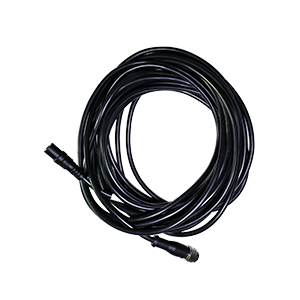

10m Power Cable (optional)
