Powered by Android 13 system and octa-core processor, it perform well in various vehicle-related applications. With multi-channels AHD camera inputs, it shows great value in auxiliary driving.
Equipped with the powerful new Android 13 system, the tablet boasts richer functions and stable performance to meet a wider range of application requirements.
It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT4, WiFi/BT and NFC communication modules, which is convenient for tracking and management.

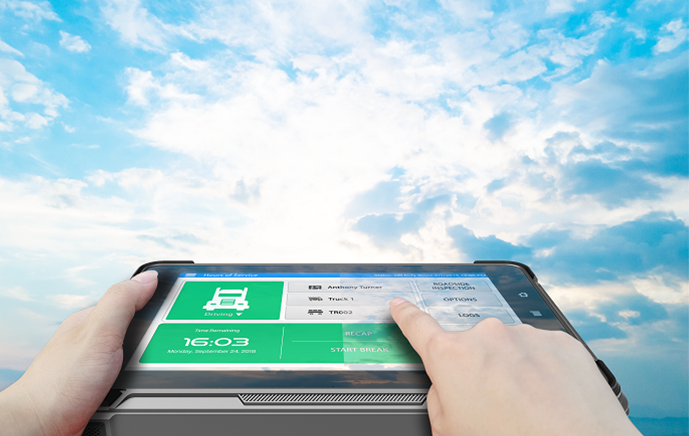

The 7-inch 1000-nit display ensures better visual experience even in strong light environment.

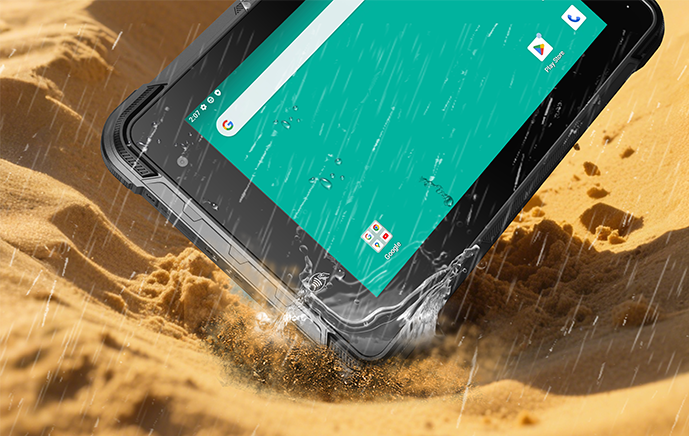

Comply with IP67 ratings and MIL-STD-810H standard, the tablet keeps stability and reliability in various harsh environmental applications.

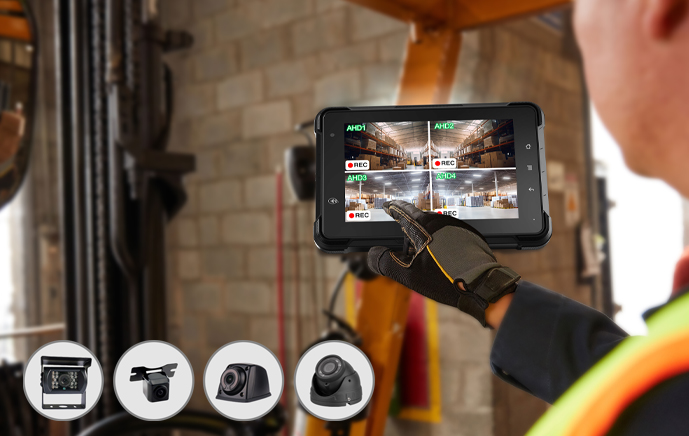

Supports AHD 720P/1080P video inputs with real-time preview and recording capabilities. The GPIO inputs are configurable for custom screen display switching. A 1TB micro SD card slot is integrated to accommodate high-capacity storage requirements.
The tablet can enter the sleep mode when it is not working, and be quickly awakened to work when it needs to be used. This function greatly minimize the consumption of battery power.

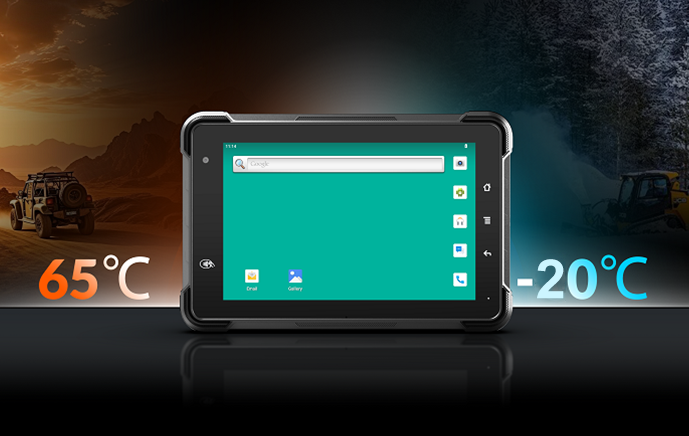

This tablet can operates in temperatures ranging from -20°C to 65°C and be stored in temperatures from -30°C to 75°C. It can be sold and used in most parts of the world.
Support rich interfaces such as RS232, USB, ACC, LAN and CANBUS, and two custom function buttons. Make it highly integrated with rich functions to be applied to various application scenarios.
Apply DC 8-36V wide voltage power input design. Comply with ISO 7637-II transient voltage protection standard, which can withstand up to 174V 350ms vehicle surge impact.

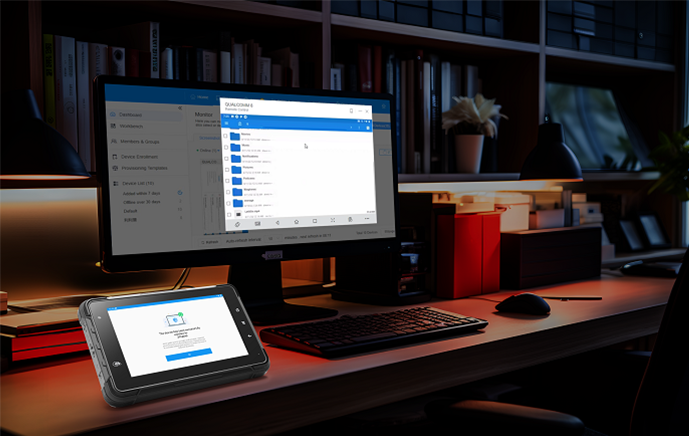

MDM software can be deployed on the tablet, enabling users to conduct more in-depth device and application management.
| System | |
| CPU | Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz |
| GPU | Adreno 610 |
| OS | Android 13 |
| RAM | LPDDR4 4GB (default)/8GB (optional) |
| Storage | eMMC 64G (default)/128GB (optional) |
| Functional Module | |
| LCD | 7 Inch, 1280×800, 1000 nits |
| Screen | Multi-point Capacitive Touch Screen |
| Audio |
Integrated microphone, integrated speaker 2W |
| Sensor | Acceleration, gyro sensor, compass, ambient light sensor |
| Button | Power button×1, customizable buttons×2 |
| Camera | Front: 5.0 megapixel (optional) |
| On Tablet Interface | |
| USB Type-C | Type-C3.1 (Type-A and Type-C cannot be used |
| simultaneously), and it does not support to charge |
|
| the built-in battery. | |
| Micro SD Slot | Micro SD card slot×1, support up to 1TB |
| SIM Slot | Nano SIM card slot×1(default), eSIM card×1(optional) |
| Earphone Jack | 3.5mm earphone jack compliant with CTIA standard |
|
Connectors (Optional) |
Port A-26pin, port B-26pin (Amphenol), M8-4pin×2 |
| Extended Cable | |
| Serial Port | RS232_1 ×1 |
| RS232_1 ×1 |
|
| RS485 | ×1 |
| CANBUS | CANBUS_1 ×1 |
| CANBUS_2 ×1 (optional) (Occupy the function of RS232_2) | |
| GPIO | GPIO Input ×3, GPIO Output ×3 |
| ACC | ×1 (0-36V) |
| RJ45 | ×1 (100 Mbps) (optional) |
| Power Input | ×1 (8-36V), the system can read the power input voltage. |
| Power Output | ×1 (8-36V), power input loops out power output, |
| max-current 1A, controlled by system | |
| USB TYPE-A | USB-A 2.0×1 (optional) (Type-A and Type-C can not |
| be used simultaneously) | |
| Video Input | ×4/×6 (optional), AHD 720P/1080P, PAL/NTSC, |
| with 12V 500mA output for AHD camera power. | |
| GPIO Input | ×6 (optional), support functions like enlarging the |
| AHD camera preview screens after triggering IO. | |
| Communication | |
| GNSS | GPS/GLONASS/BDS/Galileo/QZSS, internal antenna |
| 2G/3G/4G |
US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B14/ |
| B17/B25/B26/B66/B71 | |
| LTE-TDD: B41, internal antenna, SMA antenna (optional) | |
| EM Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 | |
| LTE TDD: B38/B39/B40/B41 | |
| WCDMA: B1/B2/B4/B5/B8 | |
| GSM: 850/900/1800/1900 MHz, internal antenna, | |
| SMA antenna (optional) | |
| WLAN | 802.11a/b/g/n/ac, 2402~2482 MHz, 5180~5825 MHz, |
| internal antenna, Fakra antenna (optional) | |
| Bluetooth | 2.1 + EDR/ 3.0/ 4.1 LE/ 4.2 BLE/ 5.0 LE, internal antenna, |
| SMA antenna (optional) | |
|
NFC (Optional) |
Operates at 13.56MHz (HF) |
| ISO/IEC 14443A, ISO/IEC 14443B PICC mode | |
| ISO/IEC 14443A, ISO/IEC 14443B PCD mode | |
| designed according to NFC Forum | |
| digital protocol T4T platform and ISO-DEP | |
| FeliCa PCD mode | |
| MIFARE PCD encryption mechanism (MIFARE 1K/4K) | |
| NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
| NFCIP-1, NFCIP-2 protocol | |
| NFC Forum certification for P2P, reader and card mode | |
| FeliCa PICC mode | |
| ISO/IEC 15693/ICODE VCD mode | |
| NFC Forum-compliant embedded T4T for NDEF short record | |
| Physical Characteristics | |
| Power | DC8-36V (ISO 7637-II compliant) |
| Battery | 3.7V, 2800mAH removable battery |
| Dimensions | 210.2×140.2×42.3mm (W×H×D) |
| Weight | 885g |
| Environmental Reliability | |
| IP Rating | IP67(IEC 60529) |
| Vibration Test | MIL-STD-810H |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| Storage Temperature | -30°C ~ 75°C (-22°F ~ 167°F) |
