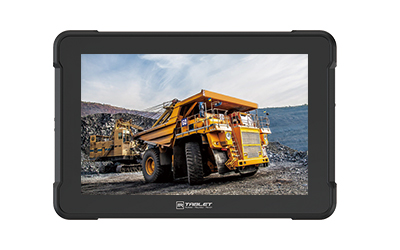

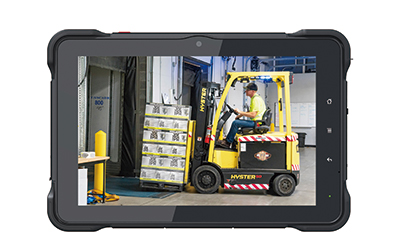

10-inch In-vehicle Rugged Tablet for Various Industrial Applications
Powered by Android 13 and equipped with GPS, 4G, Bluetooth, and other connectivity features, the VT-10A Pro delivers efficient and reliable performance for multitasking, even in harsh environments.
Qualcomm octa-core CPU, Kryo Gold (quad-core high performance, 2.0 GHz)+ Kryo Silver (quad-core low power consumption, 1.8 GHz), which is suitable for multitasking and complex computing scenarios with its high performance and energy efficiency.
Powered by Android 13, it ensures consistent, stable, and reliable performance with seamless and efficient operation of applications.

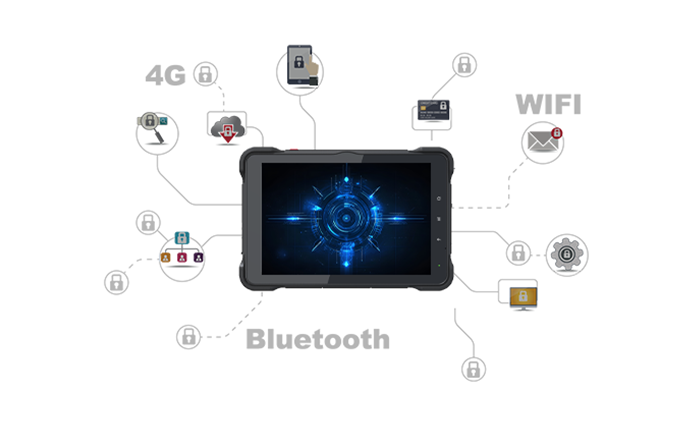

Support LTE, HSPA+, dual-band Wi-Fi (2.4GHz/5GHz)and Bluetooth 5.0 LE, covering mainstream wireless protocol. With the four satellite systems of GPS+GLONASS+BDS+Galileo, it can realize quick position at any time and place.
10-inch 1280*800 HD screen with 1200 nits brightness, users can clearly read screen in outdoor strong light environments. Supporting customized glove touch and wet touch screen, well touch response can be achieved whether gloves are worn or the screen is wet.
Featuring a 7H hardness touchscreen, the tablet effectively resists scratches and wear. The IK07-rated shell withstands 2.0 Joule mechanical impacts. Comply with IP67 and MIL-STD-810G standards ensures protection against dust, water ingress, and vibration.
DC8-36V wide voltage power input design. Comply with ISO 7637-II standard transient voltage protection. Withstand up to 174V 350ms vehicle power pulse.
Rich extended interfaces including GPIO, RS232, CAN 2.0b (optional dual channel), RJ45, RS485, video input, etc., can be applied to vehicle equipment connection and vehicle control.
Integrate multiple functions, such as NFC, eSIM card and Type-C, more functions can be customized according to different needs.
| System | |
| CPU | Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz |
| GPU | Adreno TM 610 |
| Operating System | Android 13 |
| RAM | 4GB RAM (default) / 8GB (optional) |
| Storage | 64GB FLASH (default) / 128GB (optional) |
| Storage Expansion | Micro SD card, up to 1TB |
| Functional Module | |
| LCD | 10.1 inch HD (1280×800), 1200cd/m², Sunlight readable |
| Touchscreen | Multi touch capacitive touchscreen |
| Camera (Optional) | Front: 5 MP |
| Rear: 16 MP with LED light | |
| Sound | Build-in speaker 2W, 85dB; Internal microphones |
| Interfaces | Type-C, Compliant with USB 3.0, (for data transfer;support OTG) |
| Micro SD card×1, support up to 1TB | |
| SIM Card×1 (default); eSIM×1 (optional) | |
| Docking connector×1 (POGO-PIN×24) | |
| Headset jack×1 | |
| Sensor | Acceleration, Ambient Light, Compass, Gyroscope |
| Extended Cable (Docking Station and All-in-one Cable) | |
| Power | ×1 |
| Power Output | ×1 (optional, occupy GPO_3) |
| ACC | ×1 |
| RS232 | ×2 |
| USB2.0 (Type-A) | ×1 |
| Analog Input | ×1 (optional) |
| RJ45 (10/100) | ×1 (optional) |
| CANBUS | optional (CAN 2.0b×1 / CAN 2.0b×2) |
| RS485 | ×1 (optional) |
| GPIO (Positive Trigger Input) | GPI×3, GPO×3 (standard) |
| GPI×3, GPO×2 (The power output occupies GPO_3.) | |
| Video In | ×1 (optional) |
| Audio Out | ×1 (optional) (Only for all-in-one cable) |
| Physical Characteristics | |
| Power | DC8-36V (ISO 7637-II compliant) |
| Battery: User replaceable Li-ion 8000 mAh | |
| Battery operating time: about 4.5hours (typical) | |
| Battery charging time: about 4.5hours | |
| Physical Dimensions | 277×185×31.6mm (W×H×D) |
| Weight | 1450g |
| Communication | |
| Bluetooth | 2.1 EDR/3.0 HS/4.2 BLE/5.0 LE |
| WLAN | 802.11a/b/g/n/ac;2.4GHz&5GHz |
| Mobile Broadband (NA Version) | LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 |
| LTE-TDD: B41; Internal Antenna; External SMA antenna (optional) | |
| Mobile Broadband (EM Version) | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE TDD: B38/B39/B40/B41 | |
| WCDMA: B1/B2/B4/B5/B8 | |
| GSM: 850/900/1800/1900 MHz; Internal Antenna (default), | |
| External SMA antenna (optional) | |
| NFC (Optional) | ISO/IEC 14443A, ISO/IEC 14443B PICC mode |
| ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed according to NFC Forum | |
| digital protocol T4T platform and ISO-DEP | |
| FeliCa PCD mode | |
| MIFARE PCD encryption mechanism (MIFARE 1K/4K) | |
| NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
| NFCIP-1, NFCIP-2 protocol | |
| NFC Forum certification for P2P, reader and card mode | |
| FeliCa PICC mode | |
| ISO/IEC 15693/ICODE VCD mode | |
| NFC Forum-compliant embedded T4T for NDEF short record | |
| GNSS | GPS/GLONASS/BDS/Galileo/QZSS; Internal Antenna (default); |
| External SMA antenna (optional) | |
| Environments | |
| Vibration Test | MIL-STD-810G |
| Dust Resistance Test | IP6x (IEC 60529) |
| Water Resistance Test | IPx7 (IEC 60529) |
| Operating Temperature | -10° C ~ 65°C (14°F-149°F) |
| 0° C ~ 55°C (32°F-131°F)(charging) | |
| Storage Temperature | -20° C ~70° C (-4°F-158°F) |
