VT-7A
New 7 Inch Rugged and Feature-rich Tablet.
Powered by Android 12 system, VT-7A has powerful performance and rich multimedia functions.
Feature
Android 12.0 OS
Powered by new Android 12 system, its superior performance brings users a brand new experience.
Mobile Device Management
Integrated with MDM management software, supporting device management, remote control, mass deployment and upgrade etc.
Real-time Communication
Built-in Wi-Fi/ Bluetooth /GNSS/4G functions making tracking and management of device status easier.
IP67 Rugged Design
It is IP67 rated, providing resistance against dust and water. Meet the MIL-STD-810G anti-vibration and shock standard, which make it more stable and reliable during practical application.
ISO 7637 -II
ISO 7637-II standard transient voltage protection
Withstand up to 174V 300ms car surge impact
DC8-36V wide voltage power supply
Strong Compatibility
With rich interfaces of RS232, CAN Bus, RS485, GPIOs etc., customizable to meet different needs from users.
Wide Application Field
With rich interfaces, functional modules and wide-temp operation design, it can be widely used in fleet management, precision agriculture, mining truck, etc.
Specification
| System | |
| CPU | Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
| GPU | AdrenoTM 702 |
| Operating System | Android 12 |
| RAM | LPDDR4 3GB (default)/4GB (optional) |
| Storage | eMMC 32GB (default)/64GB (optional) |
| Storage Expansion | Support up to 1T |
| Communication | |
| Bluetooth | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
| WLAN | 802.11a/b/g/n/ac；2.4GHz&5GHz |
| 2G/3G/4G (US Version) |
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD: B41 |
| 2G/3G/4G (EU Version) |
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD:B38/B40/B41 WCDMA：B1/B2/B4/B5/B8 GSM/EDGE：850/900/1800/1900 MHz |
| GNSS | NA version:GPS/BeiDou/GLONASS/Galileo /QZSS/SBAS/NavIC, L1 + L5, Internal Antenna EM version:GPS/BeiDou/GLONASS/Galileo/ QZSS/SBAS, L1, Internal Antenna |
| NFC (Optional) | Supports Type A,B, FeliCa, ISO15693 etc. |
| Functional module | |
| LCD | 7" HD (1280×800), sunlight readable 800 nits |
| Touchscreen | Multi-point Capacitive Touch Screen |
| Camera (Optional) | Front: 5.0 megapixel camera (optional) |
| Rear: 16.0 megapixel camera (optional) | |
| Audio | Integrated microphone |
| Integrated speaker 2W | |
| Interfaces (On Tablet) | Type-C (Input: 5V 1A Max), Docking Connector, Ear Jack |
| Sensors | Acceleration, Gyro Sensor, Compass, Ambient Light Sensor |
| Physical Characteristics | |
| Power | DC 8-36V (ISO 7637-II compliant) |
| Battery | 3.7V, 5000mAh battery (only for docking station version) |
| Physical Dimensions | 207.4×137.4×30.1mm (W×H×D) |
| Weight | 810g |

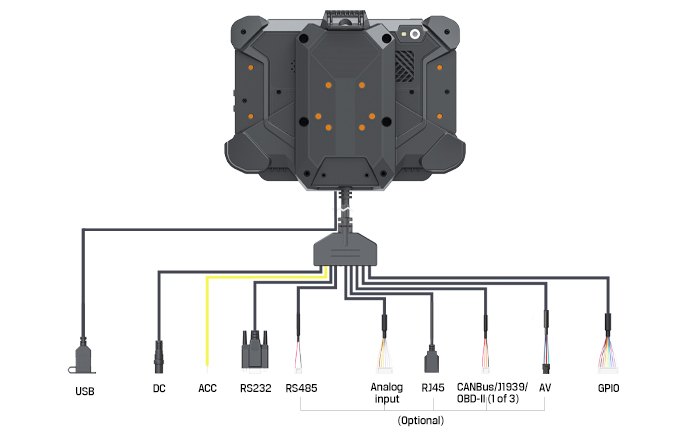

| Interface(Docking Station) | |
| USB2.0 (Type-A) | ×1 (can not be used with Type-C together) |
| RS232 | ×2 |
| ACC | ×1 (0-30V) |
| Power | ×1 (8-36V) |
| Analog Input | ×2 (optional) |
| GPIO | Input×3, Output×3 |
| CAN Bus 2.0, J1939, OBD-II | Optional (1 of 3) |
| RS485 | Optional, ×1 |
| RJ45 | Optional, ×1 |
| AV | Optional, ×1 |
| Environment | |
| Gravity Drop Resistance Test | 1.2m drop-resistance |
| Vibration Test | MIL-STD-810G |
| Dust Resistance Test | IP6x (IEC 60529) |
| Water Resistance Test | IPx7 (IEC 60529) |
| Operating Temperature | -10°C ~ 65°C (14°F ~ 149°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
Accessories
Allen Wrench Screws
USB Cable
RAM 1" Double Ball Mount (Optional)
