VT-7A PRO AHD

7-inch Rugged Vehicle Tablet with 4-ch Camera Inputs

This Android 13 rugged tablet supports multiple camera inputs, enabling visualization of vehicle's surroundings, ensuring driving safety for both on-road and off-road vehicles.

Product Tags

Feature

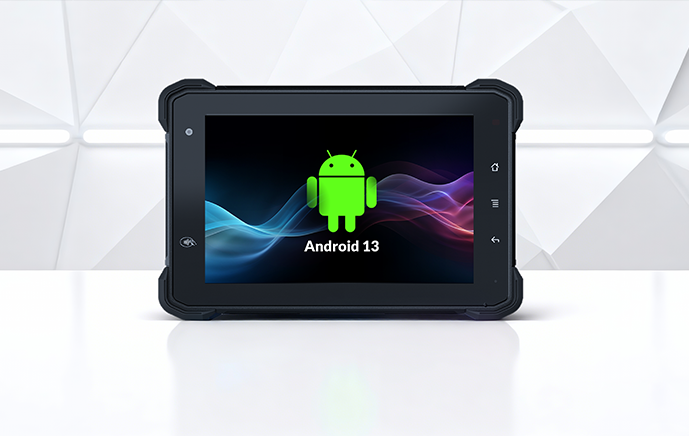

Android 13 OS

Powered by Android 13, it ensures consistent, stable, and reliable performance with seamless and efficient operation of applications.

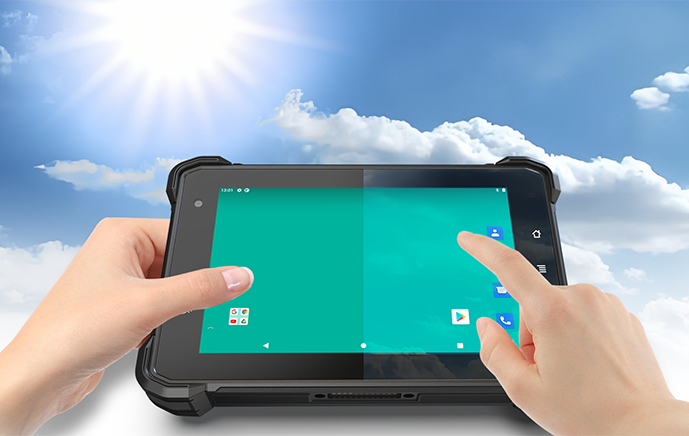

Ultra-Bright Screen

With 1000 nits high brightness screen, readable in the sunlight environments.

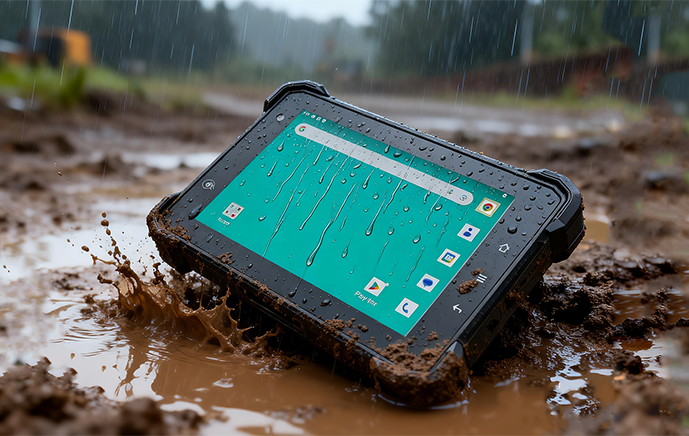

Rugged Design

Compliant with IP67 rating and MIL-STD-810G standards, it offers robust resistance to water, steam, dust, and vibration.

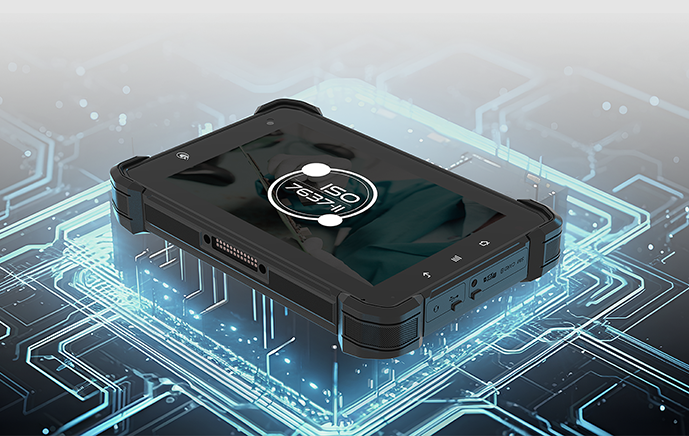

ISO 7637-II

Compliant with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.

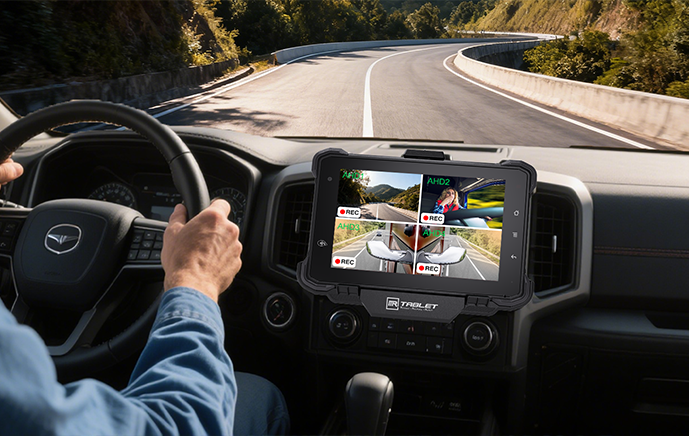

4-CH Camera Inputs

Integrated with 4-channel AHD camera inputs, it can collect and transmit images of the surrounding environment of vehicles in real time.

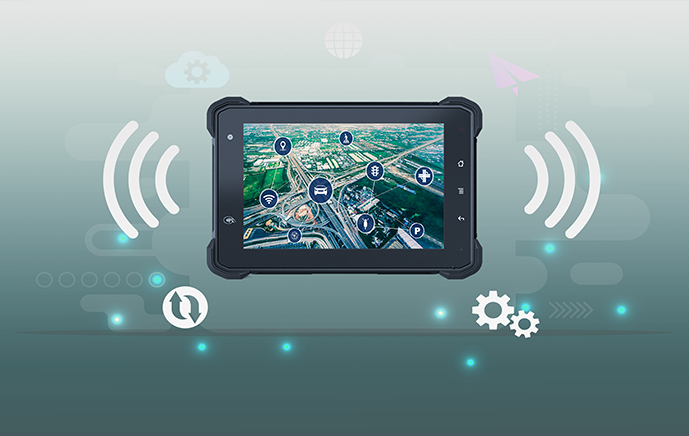

Real-time Communication

It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT 4 communication module, which is convenient for tracking management.

Specification

System
CPU	Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53,1.8GHz
GPU	Adreno 610
Operating System	Android 13
RAM	LPDDR4 4GB (default)/8GB (optional)
Storage	eMMC 64G (default)/128GB (optional)
LCD	7 Inch Digital IPS Panel, 1280×800, 1000 nits
Screen	Multi-point Capacitive Touch Screen
Audio	Integrated microphone; Integrated speaker 2W
Camera	Rear: 16.0 megapixel camera (optional, can not be
	used simultaneously with AHD)
Sensor	Acceleration, Gyro sensor, Compass, Ambient Light Sensor

Physical Characteristics
Power	USB Type-C/ Pogo pin 5V power input
Battery	3.7V, 5000mAh battery
Physical Dimensions	207.4×137.4×30.1mm (W×H×D)
Weight	810g
IP rating	IP67 (IEC 60529)
Vibration test	MIL-STD-810G
Work temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage temperature	-20°C ~ 70°C (-4°F ~ 158°F)

Interface (On Tablet)
USB	Type-C 3.0, 5V Input (can not be used together with
	USB Type-A)
Micro SD Slot	Micro SD card×1, Support up to 1T
SIM Socket	Micro SIM Card slot×1
Ear jack	3.5mm headphone jack compliant with
	CTIA standard
Docking connector	POGO PIN×24

Communication
GNSS	GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna;
	External SMA antenna(optional)

2G/3G/4G	· LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
(NA Version)	· LTE-TDD: B41, Internal Antenna;External SMA antenna(optional)

2G/3G/4G	· LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
(EM Version)	· LTE TDD: B38/B39/B40/B41
	· WCDMA: B1/B2/B4/B5/B8
	· GSM: 850/900/1800/1900MHz
	Internal Antenna (default), External SMA antenna (optional)

WIFI	802.11a/b/g/n/ac; 2.4GHz&5GHz;Internal Antenna (default);
	external SMA antenna(optional)
Bluetooth	2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE;Internal Antenna (default);
	External SMA antenna (optional)

	· ISO/IEC 14443A, ISO/IEC 14443B PICC mode
	· ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed
	according to NFC Forum
NFC (Optional)	· digital protocol T4T platform and ISO-DEP FeliCa PCD mode
	· MIFARE PCD encryption mechanism (MIFARE 1K/4K)
	· NFC Forum tags T1T, T2T, T3T, T4T and T5T
	NFCIP-1,NFCIP-2 protocol
	· NFC Forum certification for P2P, reader and card mode
	· FeliCa PICC mode
	· ISO/IEC 15693/ICODE VCD mode
	· NFC Forum-compliant embedded T4T for NDEF short record

Extended Interface (Docking Station)
Serial Port	RS232_1×1 (DEBUG, ttyHSL0),
	RS232_2×1 (UARTO,ttyHSL2)
AHD	×4, Support AHD Input of 1920×1080 and 1280×720, PAL and NTSC
USB TYPE-A	USB 2.0×1 (can not be used together with USB Type-C)
GPIO	GPI×4, high level trigger; GPO×2, open drain output
ACC	×1 (0-36V)
Power	×1 (8-36V)
Power Output	×1 (8-36V output voltage)
CANBUS	×1 (UART3, ttyHSK1)
RJ45	×1 (10/100, optional)
